Rigging corporate color palette -possible?
- HalfGlassFull
-
Topic Author
- Offline
- New Member
-
Less
More
15 Jul 2020 12:12 #108714
by HalfGlassFull
Rigging corporate color palette -possible? was created by HalfGlassFull
Is it possible to rig only certain colors when creating a rig in Motion. Company has corporate palette of 15 colors and rather than publish, I'd like them to be "there".
A) Can this be done?
b) how?
c) is Rigging the right method here?
Many thanks
A) Can this be done?
b) how?
c) is Rigging the right method here?
Many thanks
Please Log in to join the conversation.
- Karsten Schlüter
-
- Offline
- Moderator
-
Less
More
- Posts: 3790
- Thank you received: 718
16 Jul 2020 07:47 - 16 Jul 2020 07:48 #108725
by Karsten Schlüter
Replied by Karsten Schlüter on topic Rigging corporate color palette -possible?
Welcome Lawrence to fcp.co
Yes, that is possible, and yes, ‚rigging‘ into a nice drop-down menu is the tool of choice.
But… how to rig depends very much, what kind of usability you like to accomplish.
E.g., you can publish a Rig for each element, which allows to select only from a ready-made palette of colors.
And, you can Rig whole templates of ‚color schemes’.
For instance, case A, the user gets offered 6 colors for the Font, 2 colors for the outline, 4 colors for the background of a Lower3rd.
… or: case B, you bundle all those setting in a ‚template rig‘, which instantly allows only 5 pre-defined combos of colors for the font, its outline and the background ….
Yes, that is possible, and yes, ‚rigging‘ into a nice drop-down menu is the tool of choice.
But… how to rig depends very much, what kind of usability you like to accomplish.
E.g., you can publish a Rig for each element, which allows to select only from a ready-made palette of colors.
And, you can Rig whole templates of ‚color schemes’.
For instance, case A, the user gets offered 6 colors for the Font, 2 colors for the outline, 4 colors for the background of a Lower3rd.
… or: case B, you bundle all those setting in a ‚template rig‘, which instantly allows only 5 pre-defined combos of colors for the font, its outline and the background ….
Last edit: 16 Jul 2020 07:48 by Karsten Schlüter.
Please Log in to join the conversation.
- HalfGlassFull
-
Topic Author
- Offline
- New Member
-
Less
More
- Posts: 7
- Thank you received: 1
16 Jul 2020 11:17 #108727
by HalfGlassFull
Replied by HalfGlassFull on topic Rigging corporate color palette -possible?
Thank you Karsten for this ray of hope!
Luckily we only have a palette of 12 colours and so, which rig would be the best option please? I’ve tried a slider but find when adding points along the it, I’m getting hues rather than colours.
Many thanks for your insight on this.
Luckily we only have a palette of 12 colours and so, which rig would be the best option please? I’ve tried a slider but find when adding points along the it, I’m getting hues rather than colours.
Many thanks for your insight on this.
Please Log in to join the conversation.
- Karsten Schlüter
-
- Offline
- Moderator
-
Less
More
- Posts: 3790
- Thank you received: 718
18 Jul 2020 07:22 - 18 Jul 2020 07:22 #108780
by Karsten Schlüter
Replied by Karsten Schlüter on topic Rigging corporate color palette -possible?
Hi L.
sorry for replying late… real-life-thingies

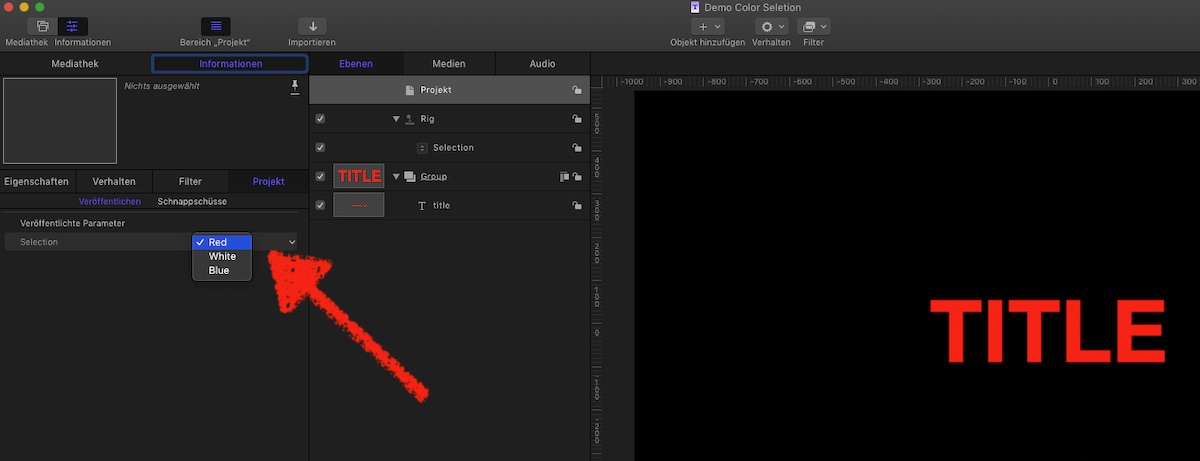

Attached a very basic Motion-Title-Generator, you can open in M5, demoing what I mentioned before: a drop-down-Rig, which allows to select the fonts color from a selection of 3.
When you install it in FCPX, you get in the Inspector a drop-down menu with the three colors …
Hope, this explains the basics. –
sorry for replying late… real-life-thingies
Attached a very basic Motion-Title-Generator, you can open in M5, demoing what I mentioned before: a drop-down-Rig, which allows to select the fonts color from a selection of 3.
When you install it in FCPX, you get in the Inspector a drop-down menu with the three colors …
Hope, this explains the basics. –
Last edit: 18 Jul 2020 07:22 by Karsten Schlüter.
Please Log in to join the conversation.
- HalfGlassFull
-
Topic Author
- Offline
- New Member
-
Less
More
- Posts: 7
- Thank you received: 1
18 Jul 2020 17:25 #108786
by HalfGlassFull
Replied by HalfGlassFull on topic Rigging corporate color palette -possible?
Karsten,
Brilliant solution. especially as I'm a visual person....
Brilliant solution. especially as I'm a visual person....
Please Log in to join the conversation.
18 Jul 2020 20:37 #108791
by JoeEditor
Replied by JoeEditor on topic Rigging corporate color palette -possible?
Everyone is a visual person. What does that mean?
Please Log in to join the conversation.
- HalfGlassFull
-
Topic Author
- Offline
- New Member
-
Less
More
- Posts: 7
- Thank you received: 1
19 Jul 2020 03:39 #108795
by HalfGlassFull
Replied by HalfGlassFull on topic Rigging corporate color palette -possible?
When it comes to learning stuff, then the
www.inc.com/molly-reynolds/how-to-spot-v...hetic-learni.htmlVAK
model is but one that is accepted: I’d say I’m in the visual/Kinesthetic side of things
Please Log in to join the conversation.
19 Jul 2020 14:07 #108804
by AppleGuru
WRONG
Here a definition, which Verbal person would understand!
Visual (spatial):You prefer using pictures, images, and spatial understanding. Aural (auditory-musical): You prefer using sound and music. Verbal (linguistic): You prefer using words, both in speech and writing. Physical (kinesthetic): You prefer using your body, hands and sense of touch.
Elementary
Replied by AppleGuru on topic Rigging corporate color palette -possible?
FCPX.guru wrote: Everyone is a visual person. What does that mean?
WRONG
Here a definition, which Verbal person would understand!
Visual (spatial):You prefer using pictures, images, and spatial understanding. Aural (auditory-musical): You prefer using sound and music. Verbal (linguistic): You prefer using words, both in speech and writing. Physical (kinesthetic): You prefer using your body, hands and sense of touch.
Elementary
Please Log in to join the conversation.
19 Jul 2020 19:24 #108815
by JoeEditor
Replied by JoeEditor on topic Rigging corporate color palette -possible?
But that modality stuff is a myth. But yeah, whatever...
