Scaling box to font size
28 Jun 2018 18:26 #96152
by bobmax48
Scaling box to font size was created by bobmax48
I have a title I am making that I would like to have the box (gradient from left to right) behind the text scale if I need to change the size of the font while in FCPX. I have tried to use Link but have not had any success. Is this possible to create in Motion 5? I do have the RT TitleMations but I want this function to be in my title. None of their effects show up in Motion.
Please Log in to join the conversation.
- Karsten Schlüter
-
- Offline
- Moderator
-
Less
More
- Posts: 3790
- Thank you received: 718
29 Jun 2018 05:53 #96160
by Karsten Schlüter
Replied by Karsten Schlüter on topic Scaling box to font size
step#1

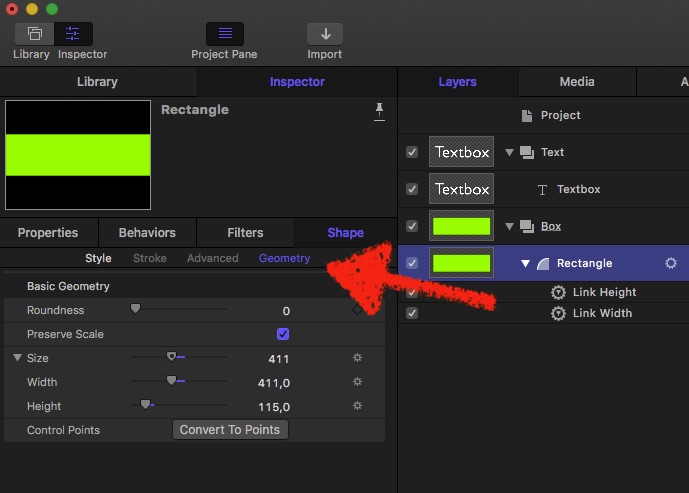

Link the Rectangles Shape Geometry to the Text Width/Height
step#2

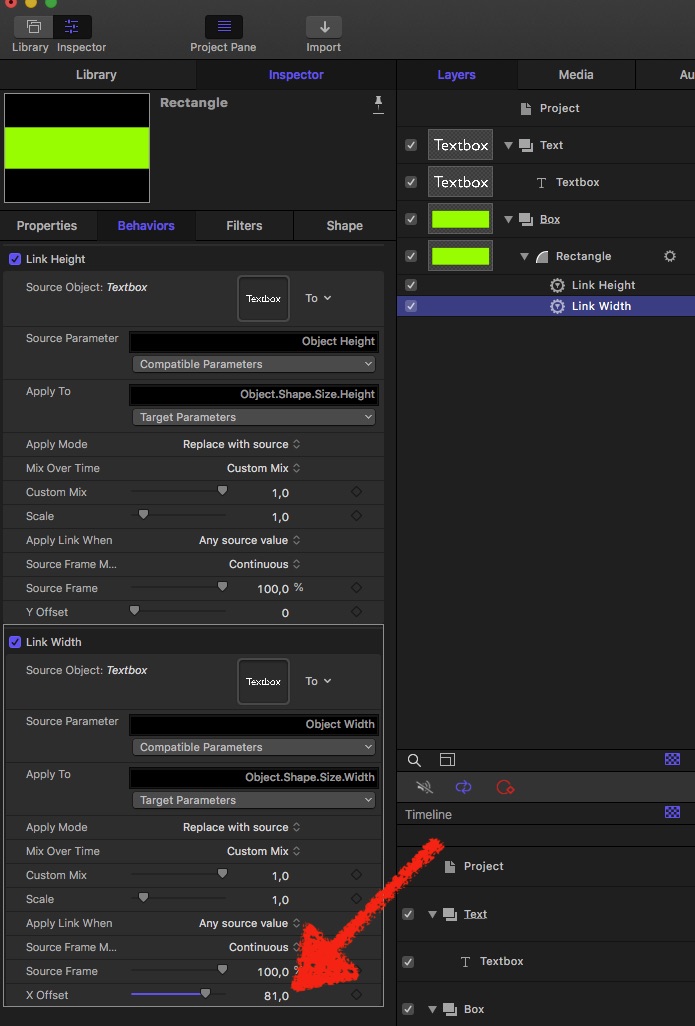

… use the X/Y offsets to add some 'room to breath' to the box…
attached a simple demo file
Link the Rectangles Shape Geometry to the Text Width/Height
step#2
… use the X/Y offsets to add some 'room to breath' to the box…
attached a simple demo file
